Chapter 1. What Is Truck Mounted Crane?
Chapter 2. Structure of the Truck Mounted Crane?
Chapter 3. Advantage of Truck Mounted Crane?
Chapter 4. How Does a Truck Mounted Crane Work?
Chapter 5. How to Choose a Truck Mounted Crane?
A truck mounted crane is a heavy mechanical equipment that mounts a crane on a truck chassis, designed to provide flexible mobility and efficient lifting capacity. Its basic structure includes a heavy truck chassis with a strong load-bearing capacity and power system, as well as a crane part, which usually includes a boom, a hook, a winch, and other lifting accessories. The boom of the crane can be retracted and rotated to operate in different working environments.
The working principle of truck mounted crane for sale is mainly reflected in its lifting capacity, which is usually measured in tons. Common ones are 5 tons, 10 tons, 20 tons, etc., depending on the design and configuration of the crane. The operator can control the crane's movements, including lifting, rotating, and retracting, through a console or remote control. Since the crane is mounted on a truck, the heavy duty truck mounted crane for sale can move quickly between different work sites, which is suitable for work that requires frequent changes in the work site. In addition, it can also be operated in a small space, suitable for urban construction, road construction and other occasions, and can be equipped with a variety of accessories, such as grabs, clamps, etc., to meet different lifting needs.
Xcmg truck mounted crane price is widely used in construction sites, logistics and transportation, municipal engineering, and maintenance and service. On construction sites, it is used to carry building materials, equipment and other heavy objects; in logistics and transportation, it provides lifting services during cargo loading and unloading and transportation.

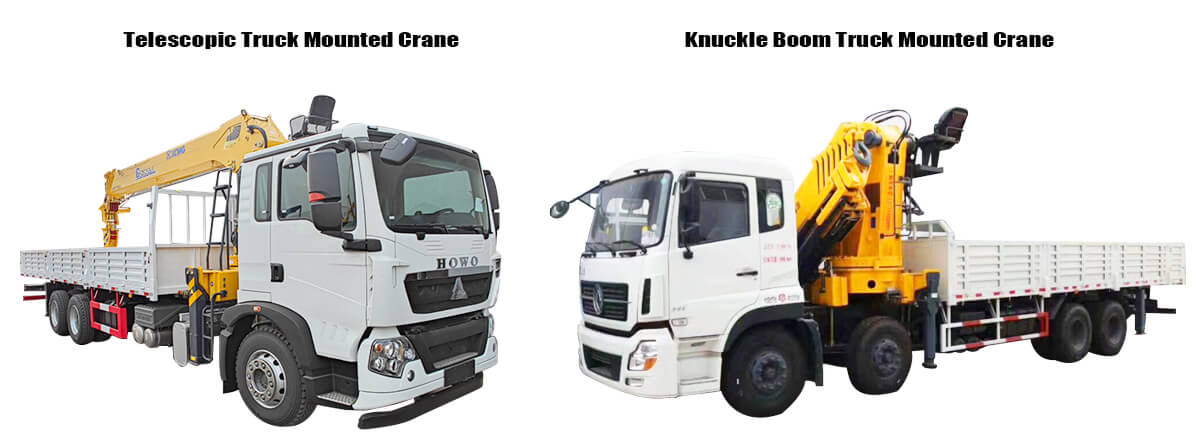

Truck mounted crane for sale has two types of booms: straight boom and folding boom.
Fixed boom crane is a lifting equipment with a straight boom design, whose boom length is fixed or retractable and adopts a rigid structure. This design makes the straight boom crane have higher stability during operation and is suitable for efficient and heavy-load lifting operations. In addition, since there is no complicated operation of telescoping and folding, the operator can directly control the lifting and rotation of the boom, making the operation process relatively simple.
The advantages of this crane include simple structure and easy maintenance, which reduces the possibility of failure. At the same time, the lifting height and operating range of the straight boom crane are relatively long, suitable for high-altitude operations, and can carry heavier loads because of its strong arm rigidity.
Articulating Crane is a lifting equipment with a retractable folding design. Its boom consists of multiple segments and can be folded and retracted by a hydraulic system. This design allows the boom to shrink to a smaller size when not needed, which is convenient for storage and transportation. Articulating cranes are more flexible and can adapt to more complex working environments, especially in areas with limited space.
The advantages of this crane include high flexibility and adaptability, and the ability to work in small or complex environments; the foldable arm design is convenient for transportation and storage, and takes up less space; and a wide lifting range, suitable for lifting tasks at various angles.
Heavy Duty Xcmg Truck Mounted Crane for Sale Price

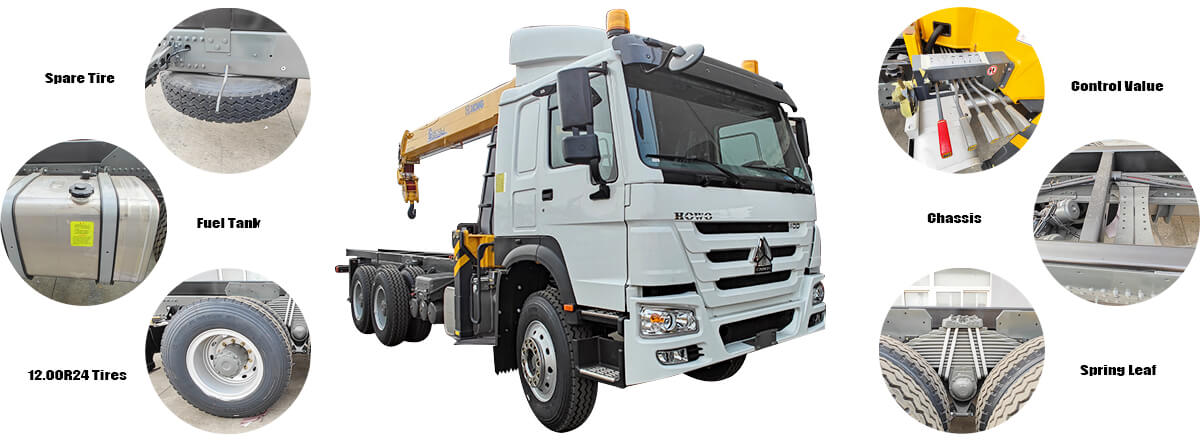

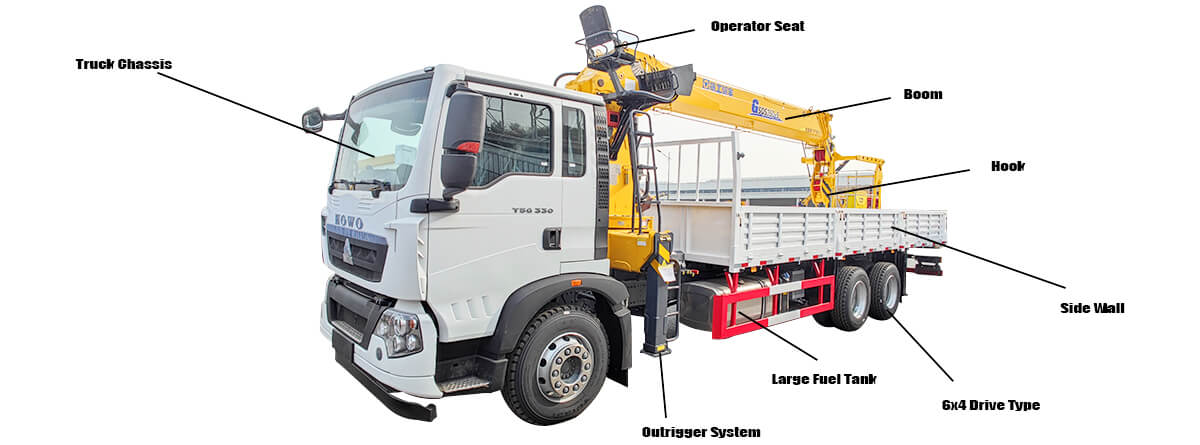

Truck Chassis
The truck chassis serves as the backbone of the heavy-duty truck mounted crane. It's usually built in a 6x4 or 8x4 configuration, providing power and stability. The chassis is crucial for carrying heavy loads and ensuring the crane operates safely.
Frame: The frame is the primary support structure, typically made from steel or alloy, offering high strength and rigidity.
Engine: A diesel engine supplies the power needed to drive the crane.
Transmission system: This includes the gearbox and drive axle, ensuring the truck can move and carry heavy equipment.
Boom
The boom is the key component that lifts and moves loads to their destination. It can be either foldable or telescopic, allowing for flexibility during operation.
Main boom: This is the primary lifting arm, made from steel for strong load-bearing.
Jib: The jib extends the reach or increases the lifting height.
Hydraulic system: The hydraulic cylinder controls the boom’s movement, including lifting, extending, and adjusting the angle.
Hook and Lifting Gear
The hook and lifting gear are responsible for lifting the cargo. Made from high-strength steel, the hook can carry heavy loads. The lifting system includes wire ropes, pulleys, and a winch, all working together for stable and safe lifting.
Hook: Attached to the crane arm by wire rope, the hook lifts the load.
Wire rope: This key part of the lifting system needs to be strong and durable.
Pulley: It changes the direction of the load or increases lifting capacity.
Winch: This device winds the wire rope to raise or lower the hook.
Hydraulic System
The hydraulic system powers the crane's arm extension, angle adjustment, and hook movement. It consists of hydraulic pumps, cylinders, and pipes.
Hydraulic pump: It generates the pressure needed for the system.
Hydraulic cylinder: It moves the crane arm and hook.
Control valve: It adjusts the flow and pressure of hydraulic oil to control the crane's movements.
Oil tank: It stores hydraulic oil, ensuring smooth operation.
Operating System (Control System)
The control system enables the operator to manage the crane’s movements. Using joysticks and buttons, the operator controls the hydraulic system, boom, and hook for precise and safe lifting.
Control console: The main device for operating the crane, featuring joysticks, buttons, and screens.
Remote control system: Some cranes come with a remote control for operation from a distance.
Safety system: It includes overload protection, tilt detection, and stability monitoring to ensure safety during operation.
Support System (Stabilizing System)
To maintain stability while lifting, the crane is equipped with outriggers. These hydraulic stabilizers are adjustable in height and extend to disperse the crane’s load, preventing tipping.
Outrigger: This stabilizing system ensures the crane remains steady, particularly during heavy lifting.
This structure ensures the crane operates efficiently, with all parts working together to lift heavy loads safely and effectively.
Heavy Duty Xcmg Truck Mounted Crane for Sale Price
Truck chassis
The truck chassis is the foundation of a heavy truck crane, usually in a 6x4 or 8x4 configuration, providing power and stability, carrying heavy loads and ensuring the safe operation of the crane.
Frame: The frame is the main supporting part of the chassis, usually made of steel or alloy materials, with high strength and rigidity.
Engine: The diesel engine provides the power required for driving.
Drivetrain: It includes the gearbox and drive shafts, ensuring that the truck can travel and carry heavy equipment.
Boom
The boom is the main load lifting and moving part. It can be folded or telescopic, providing flexibility during operation.
Main boom: The main boom is the main lifting arm, made of steel structure and has a strong load-bearing capacity.
Jib: The jib is used to extend the operating radius or increase the lifting height.
Hydraulic system: The hydraulic cylinder controls the lifting, telescoping and angle adjustment of the boom.
Hook and lifting device
The hook and lifting device are responsible for lifting the cargo. The hook is made of high-strength steel and can withstand heavy loads. The lifting device includes wire rope, pulley and winch, which work together to ensure the stability and safety of lifting.
Hook: connected to the boom by wire rope, used to lift objects.
Wire rope: a key component of the lifting system, requiring high strength and wear resistance.
Pulley: changes the direction of lifting objects or increases lifting capacity.
Winch: used to retract and release wire ropes and adjust the lifting and lowering of hooks.
Hydraulic system
The hydraulic system drives the extension and retraction of the boom, angle adjustment and lifting and lowering of the hook. It consists of hydraulic pumps, hydraulic cylinders and pipes.
Hydraulic pump: provides the required pressure for the system.
Hydraulic cylinder: drives the movement of the boom and hook.
Control valve: adjusts the flow and pressure of hydraulic oil to control the movement of various parts of the crane.
Oil tank: stores hydraulic oil to ensure the normal operation of the system.
Operating system (control system)
The operating system enables the operator to control the movement of the crane. Through rockers and buttons, the operator can accurately and safely control the hydraulic system, boom and hook.
Console: The main control device, equipped with joysticks, buttons and display screens, through which the operator operates.
Remote control system: Some models are equipped with a remote control system, which allows the operator to remotely operate the crane.
Safety system: Including overload protection, tilt detection, stability monitoring, etc. to ensure safe operation.
Support system (stabilization system)
To ensure the stability of the crane during lifting, the crane is equipped with an outrigger system. The outriggers can be adjusted in height to help distribute the load and prevent the crane from tilting.
Outriggers: The hydraulic outrigger system can be telescopically adjusted to ensure the stability of the crane, especially when lifting heavy objects.
This structural design ensures that the crane can work efficiently, and all components work together to lift heavy objects safely.
Performance and efficiency
High load capacity: Our heavy truck cranes can carry all kinds of heavy objects and adapt to various heavy lifting tasks, ensuring stability and safety under high load conditions.
Fast operation: The telescopic arm design enables the boom to quickly adjust the length, reduce preparation time, improve work efficiency, and is suitable for high-frequency lifting tasks.
Flexibility and Adaptability
Versatility: Truck cranes are suitable for a variety of working environments, including construction sites, warehouses, logistics centers, etc., and can meet different lifting needs.
Aerial working ability: The telescopic arm can reach a higher working height, suitable for aerial work, and can easily cope with lifting tasks in places such as high buildings and bridges.
Safety
Designed for stability: Our heavy-duty truck cranes are equipped with advanced stability systems to ensure safe operation under high loads and uneven ground, reducing the risk of accidents.
Easy to operate
Humanized control system: Our cranes are equipped with intuitive control panels, which are easy to operate.
Remote control option: Some models support remote control operation, allowing operators to perform lifting operations at a safe distance, improving work safety.
Maintenance and durability
Low maintenance cost: We use high-quality materials and advanced manufacturing processes to reduce failure rates and maintenance costs.
Durability: Designed with a variety of working environments in mind, it has good corrosion and wear resistance to ensure long-term use in harsh conditions.
Heavy Duty Xcmg Truck Mounted Crane for Sale Price
1. Equipment preparation and inspection
Before starting the lifting operation, the lifting equipment needs to be inspected to ensure that the truck crane is in good working condition. The inspection includes:
Hydraulic system: Check whether the hydraulic oil is sufficient and whether there is any leakage in the system.
Outriggers: Confirm that the outriggers are not damaged, can be retracted normally, and can provide sufficient support.
Electrical system: Check whether all control systems, lights and warning devices are working properly.
Boom and hook: Check whether the telescopic part of the boom and the hook are worn or damaged to ensure safe operation.
Tires and chassis: Check whether the tires are properly inflated and whether there is any obvious damage to the chassis.
2. Setup and positioning
The equipment is positioned and set according to the terrain and needs of the work site.
Ground preparation: Make sure the ground in the work area is flat and stable. If the ground is uneven, support plates or reinforced foundations may be required.
Outrigger deployment: The crane is firmly fixed by the outriggers to prevent it from tipping over during the lifting process. Outrigger deployment methods usually include front and rear outriggers and side outriggers to ensure even load distribution.
Horizontal calibration: Use hydraulic outriggers and a level to ensure that the crane remains level and reduce the risk of tilting during operation.
3. Telescopic boom
The telescopic boom design of the truck crane can be flexibly adjusted according to the lifting needs, and the operator can adjust it through the console or remote control.
Telescopic operation: Extend the boom step by step according to the operation needs. Each time you extend or retract, make sure that the angle and center of gravity of the boom and load are reasonable.
Angle adjustment: Adjust the boom angle to align it with the load and the target position to avoid equipment damage due to excessive angles.
4. Lifting operation
After the crane is ready, you can start the lifting operation:
Connect the sling: Use equipment such as hooks and wire ropes to connect the load and ensure that the load is firmly hung on the crane.
Load monitoring: Check whether the crane is in the safe lifting range through the load monitoring system to avoid overloading.
Lifting operation: Lift the load slowly and steadily to ensure that the load rises vertically and avoids deviation.
Position adjustment: Adjust the load's aerial position as needed and move it to the target position.
Heavy Duty Xcmg Truck Mounted Crane for Sale Price
Detailed precautions for daily maintenance of xcmg truck mounted crane price:
1. Regular inspection
Visual inspection: Before use every day, conduct a comprehensive visual inspection to ensure that the heavy duty truck mounted crane for sale has no obvious damage, cracks or corrosion.
Hydraulic system inspection: Check the hydraulic oil level and oil quality to ensure that there is no leakage. Regularly replace the hydraulic oil and filter element to keep the system running properly.
2. Lubrication
Lubrication points: Lubricate all lubrication points regularly, use appropriate lubricating oil or grease to ensure smooth operation of moving parts and reduce wear.
Joints and hinges: Pay special attention to the lubrication of joints and hinges to prevent rust and jamming.
3. Electrical system maintenance
Battery inspection: Regularly check the battery power and wiring to ensure good connection and avoid failures caused by insufficient power.
Cables and connectors: Check the cables and connectors for wear or corrosion, and replace them if necessary to ensure the normal operation of the electrical system.
4. Cleaning
External cleaning: Regularly clean the exterior of the heavy duty truck mounted crane for sale to remove dust, oil and other debris to maintain the good appearance and working environment of the equipment.
Internal cleaning: Regularly check and clean the operating room to ensure that the control panel and instruments are clearly visible and avoid dust affecting the operation.
