This xcmg 56m used concrete boom trucks for sale has demonstrated excellent efficiency with its powerful power system and advanced hydraulic technology. Its efficient pumping system can complete the delivery of a large amount of concrete in a short time, reducing the waiting time during construction and greatly improving the production efficiency of the construction site. Whether under high-pressure working conditions or in long-term continuous work, it can stably provide strong power output to ensure the smooth operation process. By precisely controlling the flow and pressure of concrete, this pump truck not only improves work efficiency, but also ensures the uniformity and quality of concrete, providing strong support for various construction projects.
This xcmg 56m used concrete boom trucks for sale is designed with full consideration of the complexity and variability of the construction site, showing extremely strong flexibility. Its pump arm adopts a multi-joint, adjustable structure, which enables it to easily cope with various narrow or difficult construction environments. This flexibility greatly reduces the difficulty of operation caused by space limitations, greatly improves the freedom and efficiency of construction, and makes construction in complex environments smoother and worry-free.
This xcmg 56m used concrete boom trucks for sale has excellent safety and high automation levels, providing full protection for personnel and equipment on the construction site. Its intelligent hydraulic control system can automatically adjust the working parameters, reduce the possibility of human operating errors, and ensure the stability of the pumping process. The body is equipped with an advanced outrigger stabilization system, which can effectively prevent the pump truck from tilting or overturning in complex terrain.
Xcmg 56m Used Concrete Boom Truck Price
Xcmg 56m Used Concrete Boom Truck Price
Xcmg 56m Used Concrete Boom Truck Price
Xcmg 56m Used Concrete Boom Truck Near Me
Max. speed: 90km/h
Max. gradeability: 38%
Min. turning diameter: 27.4m
Brake distance: ≤10m
Wheelbase: 1995+5205+1370+1450mm
Tread (front/rear): 2028/1872mm
Min. clearance: 270mm
Tyre specification: 12.00R20
Engine Model: D13
Output power: 324/1400~1800kw/(r/min)
Max. torque: 2200/1050~1400N.m/(r/min)
Displacement: 12.8l
Emission Standard: Nation III GBⅢ
Dimension (Length×Width×Height): 14885×2500×3990mm
Total vehicle weight: 49750kg
Fuel tank capacity: 410l
Fuel consumption per 100km: 50l/100km
Theoretical output(high pressure/low pressure): 100/163m3/h
Theoretical pumping times(high pressure/low pressure): 13/21次/min
Max. diameter of pumping concrete aggregate: 40
Feeding height: 1530
Reach height: 55.7
Reach depth: 44
Slewing radius: 51.7
Slewing angle: 364
1st boom stretch angle: 96
2nd boom stretch angle: 180
3rd boom stretch angle: 180
4th boom stretch angle: 180
5th boom stretch angle: 260
Overall outrigger span: 11250±50
Front outrigger transverse span: 11400±50
Rear outrigger transverse span: 11300±50

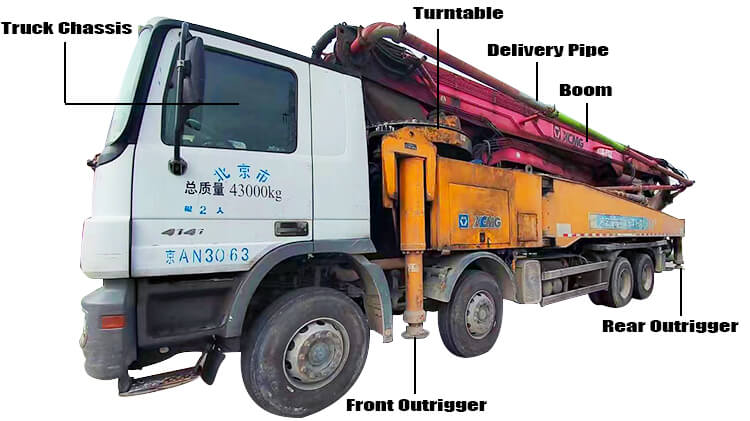

1. This xcmg 56m used concrete boom truck near me uses a heavy-duty chassis dedicated to Mercedes-Benz, providing unparalleled carrying capacity and power support. Whether it is on a rugged construction site or in complex terrain conditions, the chassis can maintain a high degree of stability. Its powerful power system ensures the smooth driving of the pump truck in various environments, can smoothly pass through different terrains, and carry heavy concrete pumping systems. The design of this chassis not only enhances the durability of the pump truck, but also extends its service life.
2. This xcmg 56m used concrete boom truck near me is equipped with an efficient hydraulic system, which ensures the smooth delivery of concrete and stability during the pumping process. The hydraulic system can accurately control the pumping speed and pressure, effectively preventing the blockage or uneven flow of concrete. In different working environments, the hydraulic system always maintains a stable performance, which not only improves the efficiency of concrete pumping, but also ensures the quality of concrete and the safety of the construction process.
3. The multi-jointed pump arm of this boom truck concrete for sale has excellent scalability and flexibility. The pump arm is controlled by a hydraulic system, and its extension and rotation angles can be adjusted according to construction requirements, easily reaching different construction heights and positions. Whether at the top of a high-rise building or in a small construction site space, the pump arm can accurately deliver concrete to the designated location, avoiding the space limitations in the operation of traditional pump trucks.
4. The pumping system of this boom truck concrete for sale ensures efficient delivery of concrete from the mixer to the construction site. The system uses high-pressure pumping technology, which can smoothly deliver concrete to a long-distance construction area in a short time. Its unique non-clogging design avoids the blockage phenomenon that occurs during the common concrete delivery process, effectively ensuring the continuity and stability of pumping. Whether it is conventional construction or construction under special and complex environments, the pumping system can operate stably to ensure that the project is completed on time.
5. The outrigger system of this boom truck concrete for sale is uniquely designed to support the pump truck and ensure its stability during operation. The outrigger system is equipped with an automatic adjustment function, which can automatically adjust the length and angle of the outrigger according to the ground conditions, load requirements and working posture of the pump truck at the construction site, thereby providing optimal stability in different working environments. This design ensures that the pump truck can operate efficiently and stably for a long time, ensuring the safety and efficiency of the construction process.
