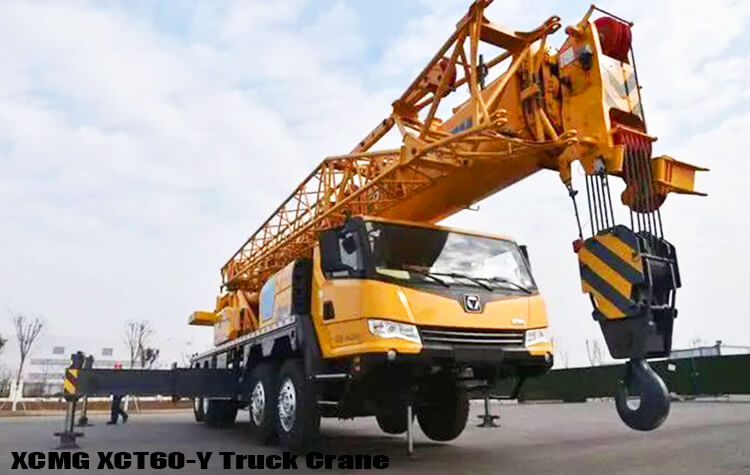

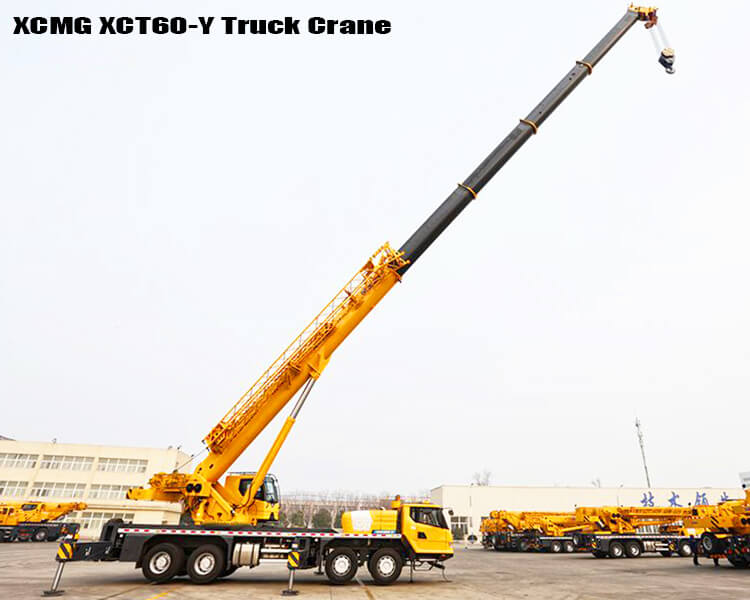

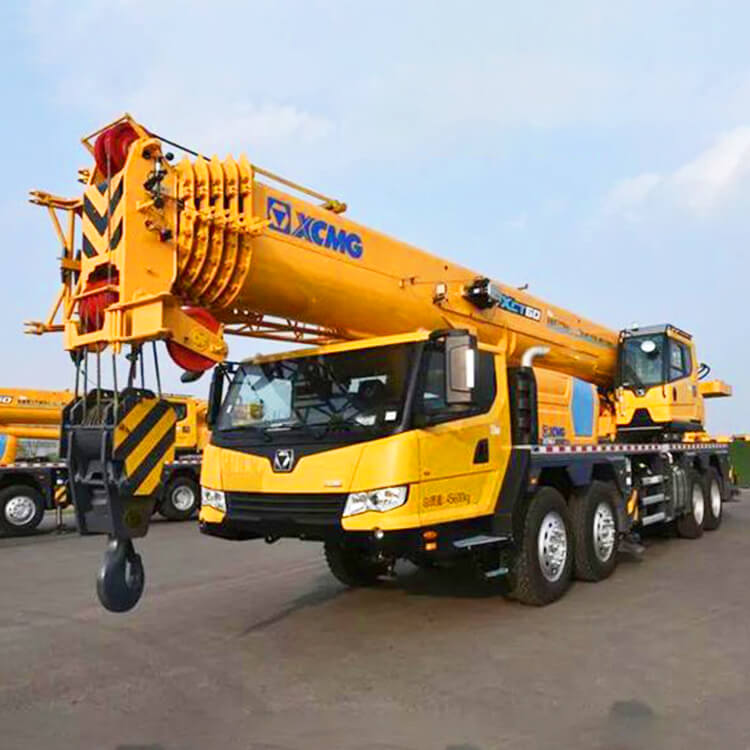

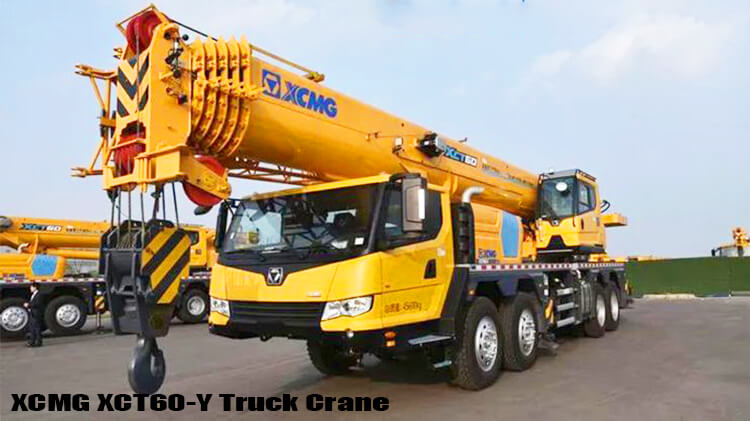

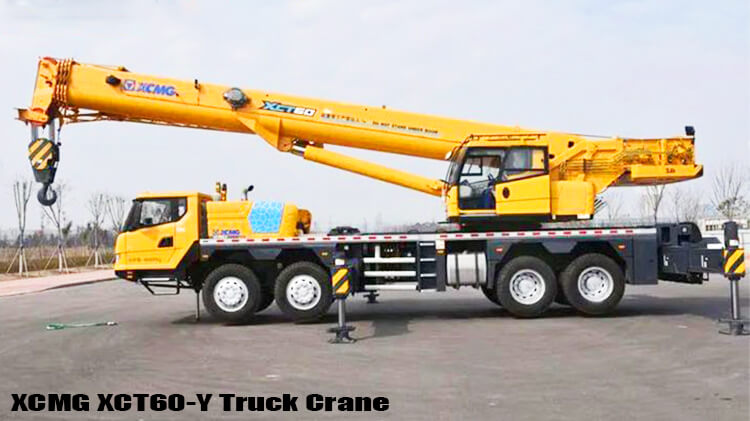

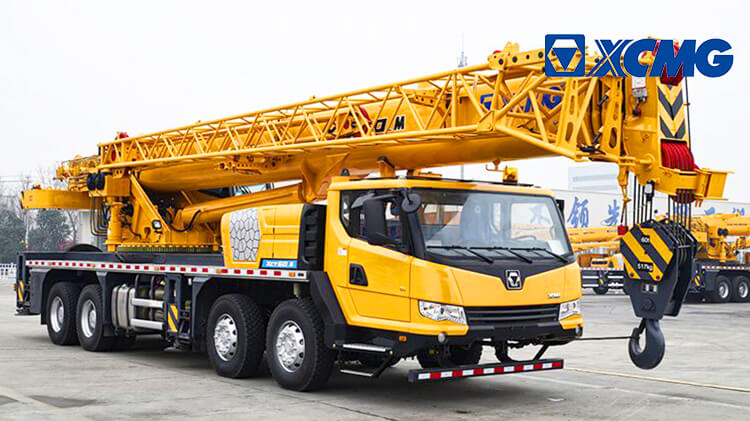

Xcmg XCT60-Y 60 Ton Telescopic Truck Crane

Video of Telescopic Crane Truck

Description of Telescopic Crane Truck

Xcmg XCT60 Y 60 Ton Telescopic Truck Cranes for Sale

Xcmg XCT60 Y 60 Ton Telescopic Truck Cranes for Sale

Xcmg XCT60 Y 60 Ton Telescopic Truck Cranes for Sale

Xcmg XCT60 Y 60 Ton Telescopic Truck Cranes for Sale

Specification of Telescopic Crane Truck

Overall dimension: 14090×2790×3630mm

Total weight in travel: 42200kg

1st and 2nd axle load: 16200kg

3rd and 4th axle load: 26000kg

Engine rated power: 247/2200kw/(r/min)

Max. output torque/rpm: 1350/1100-1600N.m/(r/min)

Max. travel speed: 90km/h

Min. turning diameter: 24m

Min. ground clearance: 250mm

Approach angle: 18/10 (front protective device included)°

Departure angle: 13°

Max. grade ability: 36%

Fuel consumption for 100km: ≤36L

Max. rated total lifting capacity: 60t

Min. rated working radius: 3m

Base boom Max. load moment: 2009kN.m

Fully-extended boom Max. load moment: 1113kN.m

Longitudinal outrigger span: 6.1m

Lateral outrigger span: 7.1m

Base boom Hoist height: 11.5m

Fully extended boom Hoist height: 43.6m

Base boom length: 11.5m

Fully-extended boom length: 44m

Jib offset angle: 0,15,30°

Turning radius at turntable tail: 3.482m

Max. lifting torque: 1764kN.m

Boom raising time: ≤40s

Boom fully extending time: ≤90s

Max. speed of main winch (single rope) (no load): ≥130m/min

Max. speed of aux. winch (single rope) (no load): ≥130m/min

Advantages of Telescopic Crane Truck
