This xcmg qy50kd 50 ton 58m mobile crane price is a 50-ton all-terrain mobile crane with a maximum lifting height of 58 meters. It is widely used in construction, engineering, bridges, oil fields, wind power and other fields, and is particularly suitable for complex environments such as large-tonnage lifting, heavy equipment handling and high-altitude operations. As an all-terrain crane, QY50KD has the ability to travel on various complex terrains. It can not only be flexible and maneuverable in urban environments such as urban construction sites and narrow roads, but also can operate stably in harsh terrains such as mountains, muddy and sandy land. This makes it the preferred equipment for many large infrastructure projects and major lifting tasks.
The structural design of this xcmg qy50kd 50 ton 58m mobile crane price combines efficiency, stability and safety. It uses high-strength steel and precision processing technology to ensure the durability and high-strength load-bearing capacity of the crane. Its main boom and jib design have been carefully optimized, which not only provides a longer operating radius, but also provides excellent operating flexibility under various lifting requirements. At the same time, the crane is equipped with a number of advanced technologies, such as fully automatic telescopic arms and hydraulic systems, which further improve the operating efficiency of the equipment and can adapt to changing working conditions. In terms of safety, the XCMG QY50KD is equipped with comprehensive protection designs, such as load limits, operation alarm systems, etc., to ensure stability and operational safety during operation.
This xcmg qy50kd 50 ton 58m mobile crane price has a strong lifting capacity and stable working performance. Its structural design has been carefully optimized and has extremely high working efficiency and adaptability. Whether it is used in multiple industries such as construction, transportation, and energy, or in operations under various complex working conditions, it can perform well. Thanks to its advanced hydraulic system, intelligent operation interface, powerful outrigger system and other configurations, the QY50KD can operate stably during the lifting process, ensuring efficient operation and precise positioning, and maximizing the safety and reliability of the operation.
Xcmg Crane 50 Ton Price
Xcmg Crane 50 Ton Price
Xcmg Crane 50 Ton Price
Xcmg 50 Ton Crane Price
Model: Xcmg 50 Ton Crane Price
Overall dimension: 13750*2800*3520mm
Total weight in travel: 41000kg
Front axle: 15000kg
Rear axle: 26000kg
Engine Model: WD615.334(domestic III)
Engine rated power: 247/2200kw/(r/min)
Engine rated torque: 1350/1400N.m/(r/min)
Max. travel speed: 80km/h
Min. turning diameter: 24m
Min. ground clearance: 291mm
Approach angle: 17°
Departure angle: 11°
Max. grade ability: 40%
Braking distance (at 30 km/h, full load ): ≤10m
Fuel consumption for 100km: ≤45L
Max. rated total lifting capacity: 50t
Min. rated working radius: 3m
Turning radius at turntable tail: 3.482m
Max. lifting torque: 1764kN.m
Base boom: 11.3m
Fully extended boom: 42.7m
Fully extended boom+ jib: 57.7m
Longitudinal outrigger span: 5.91m
Lateral outrigger span: 6.9m
Boom luffing time: 88s
Boom full extension time: 180s
Max. swing speed: ≥2.0r/min
Max. speed of main winch (single rope) (no load): ≥110m/min
Max. speed of aux. winch (single rope) (no load): ≥110m/min

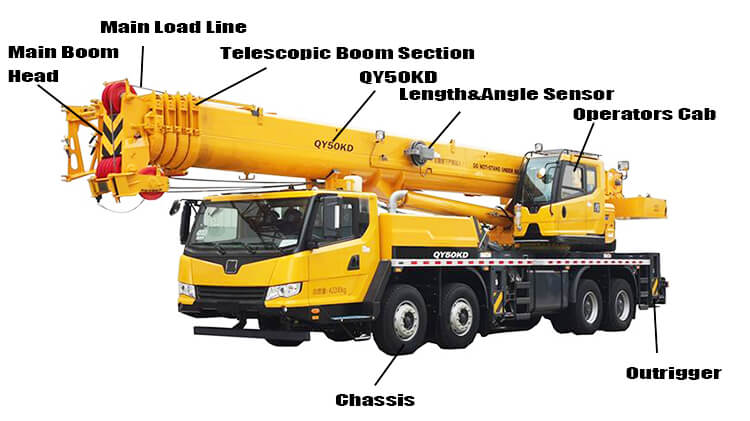

1. This xcmg mobile crane 50 ton for sale is equipped with a main boom as long as 58 meters, made of high-strength steel, with high load-bearing capacity and anti-bending performance. The design of the boom not only provides a long operating range, but also ensures stability under various working conditions. In order to cope with higher operating requirements, the equipment can also be equipped with a jib to further expand the working range of the crane and enhance operational flexibility.
2. The chassis of this xcmg mobile crane 50 ton for sale adopts a high-strength steel structure and is optimized to enhance the vehicle's anti-tilt ability and stability. The chassis design not only ensures the excellent passability of the equipment under various complex terrains, but also has high durability. Its four-wheel drive system and five-axis structure enable it to drive smoothly under various ground environments, with excellent off-road capabilities and maneuverability.
3. This xcmg mobile crane 50 ton for sale is equipped with an efficient hydraulic system that can provide sufficient power to support various operations of the crane. The hydraulic pump, hydraulic motor and hydraulic cylinder are all made of high-quality components to ensure that the hydraulic system can work stably and respond quickly under heavy loads. The hydraulic system also has a self-diagnosis function, which can monitor the system status in real time during the operation of the equipment to avoid failures.
4. The boom of this xcmg 50 ton crane price adopts a telescopic design, which can adjust the arm length as needed to adapt to different lifting needs. The telescopic arm system is equipped with a hydraulic drive device with a high telescopic speed, which can quickly and smoothly complete the lifting and lowering of the arm, greatly improving the work efficiency.
5. This xcmg 50 ton crane price is equipped with a powerful outrigger. The four outriggers adopt a horizontal and vertical layout, which can be flexibly adjusted according to the working environment to ensure the stability and support of the equipment. In addition, the outrigger system is also equipped with an efficient hydraulic drive, which can quickly adjust the support angle to meet the needs of different terrains.
