This 50 ton xcmg truck crane for sale is an ideal choice for construction sites and heavy machinery industry with its excellent design and high-strength structure. Its main arm and jib are made of high-strength steel. After precise structural optimization and mechanical analysis, it can not only withstand large tonnage loads, but also work stably in various extreme environments. The design of the crane emphasizes safety and durability, and can ensure long-term and efficient operation in various bad weather and complex working conditions. At the same time, the body structure has also undergone strict shock absorption design, which can effectively reduce the impact of vibration, thereby improving the stability and comfort of operation.
This 50 ton xcmg truck crane for sale is equipped with an advanced hydraulic system to ensure its strong lifting capacity and flexible operating performance. Whether it is lifting, telescoping or slewing, it can complete the lifting task accurately and efficiently, greatly improving the operating efficiency. When the crane is loaded with a large load or has a long operating radius, it can still maintain stable operating performance and reduce the risks caused by overload or imbalance. In addition, the crane also has high operational flexibility, especially in narrow spaces and complex terrains. With its flexible steering system and excellent action response ability, it can successfully complete difficult tasks.
This 50 ton xcmg truck crane for sale is equipped with an advanced intelligent control system, which can monitor the working status, load conditions and key parameters of the equipment such as the hydraulic system in real time, and improve work efficiency and safety through automatic adjustment. The intelligent system can warn of potential faults in advance and help operators take timely measures, reducing the occurrence of sudden failures and improving the reliability and work efficiency of the equipment.

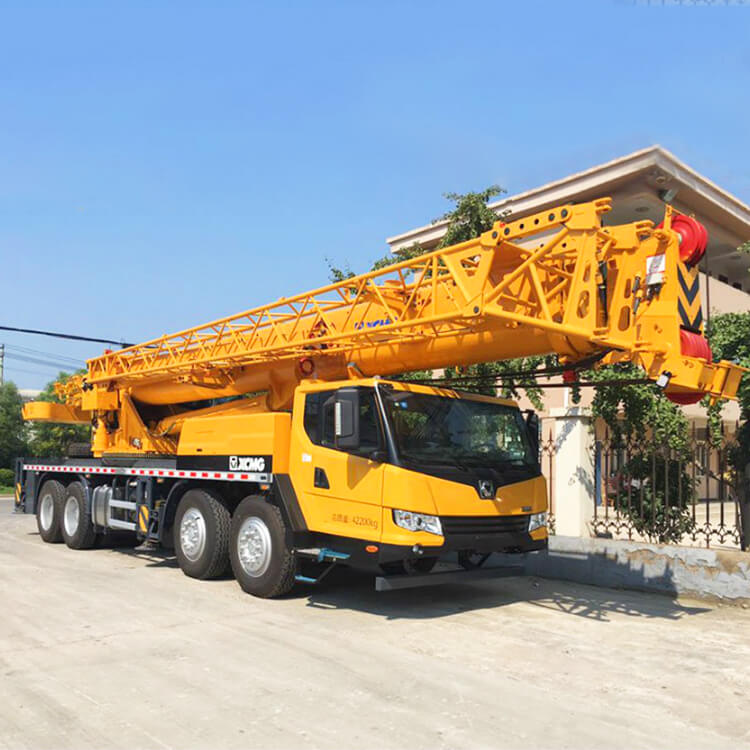

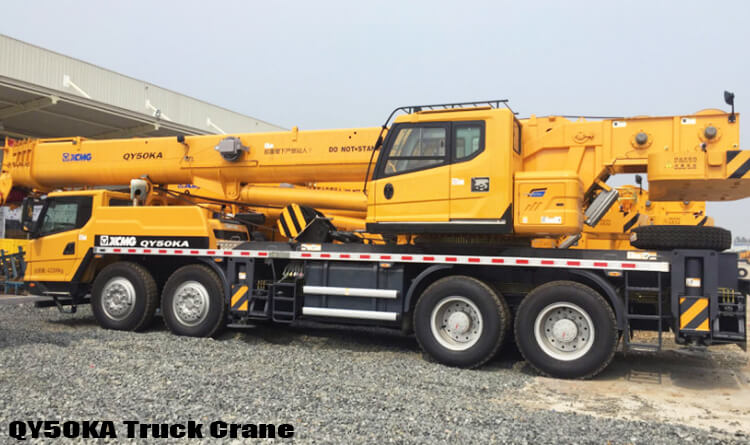

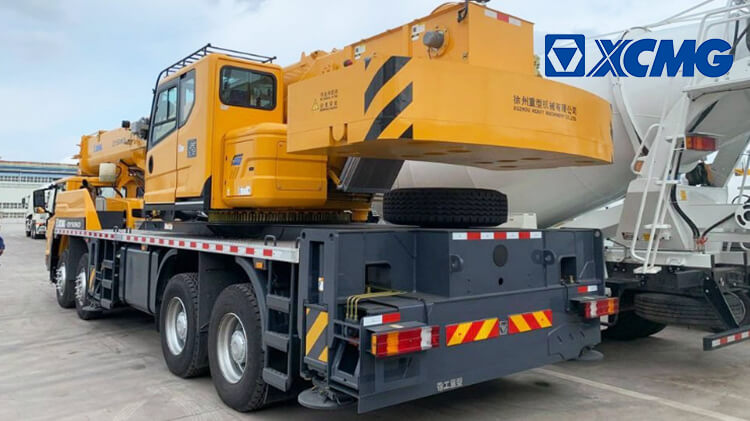

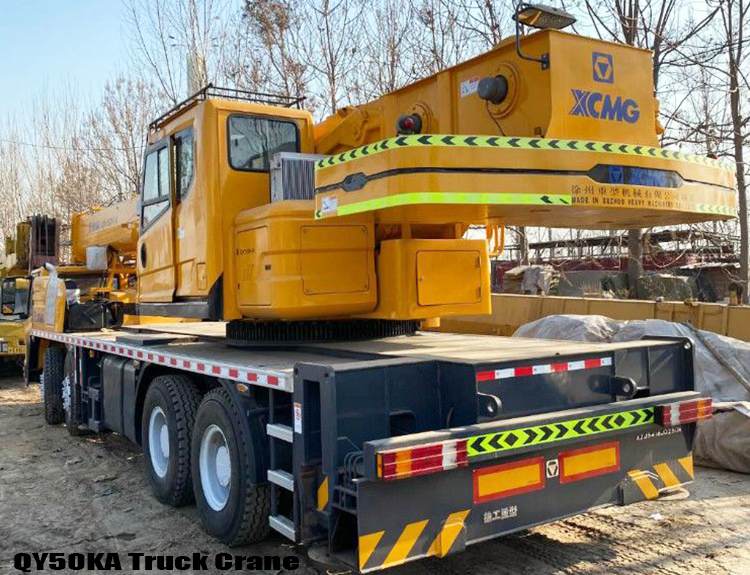

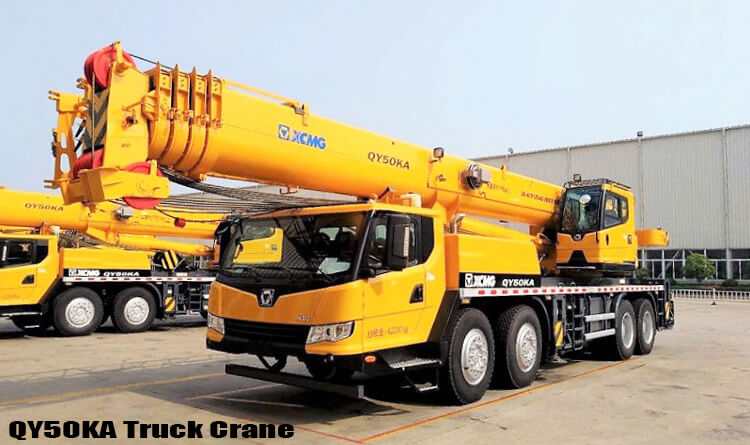

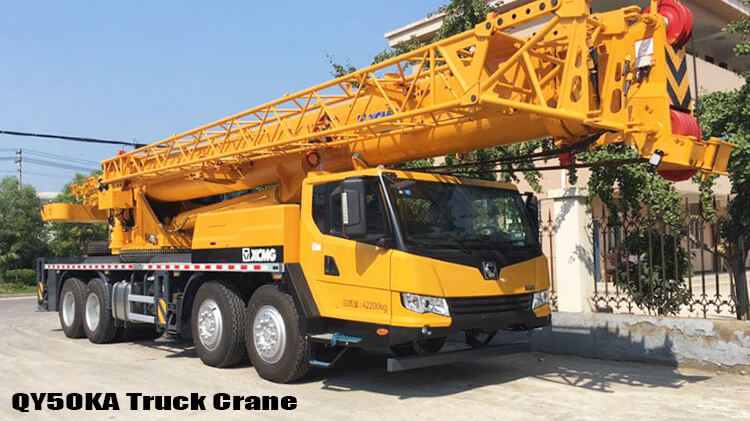

Xcmg QY50kA 50 Ton Truck Crane for Sale
Xcmg QY50kA 50 Ton Truck Crane for Sale
Xcmg QY50kA 50 Ton Truck Crane for Sale
Xcmg QY50kA 50 Ton Truck Crane for Sale
Xcmg QY50kA 50 Ton Truck Crane for Sale
Overall length: 13930mm
Overall width: 2780mm
Overall Height: 3630mm
Wheel Base: 2304+2075mm
Front overhang/rear overhang: 2389/2064or 2376/2064mm
Front extension/rear extension: 2131/226 or 2144/226mm
Total vehicle mass in travel configuration: 42200kg
Front axle: 16200kg
Rear axle: 26000kg
Engine Model: WD615.338
Engine rated power: 276/2200kw/(r/min)
Engine rated torque: 1500/1300-1600N.m/(r/min)
Max. travel speed: 85km/h
Min. steady travel speed: 2~3km/h
Min. turning diameter: 24m
Min. ground clearance: 327mm
Max. grade ability: 42%
Approach angle: 19°
Departure angle: 15°
Braking distance (at 30 km/h, full load ): ≤10m
Oil consumption per 100km: ≤40L
Exterior noise level during acceleration traveling: 88dB (A)
Noise level at seated position: 90dB (A)
1. This truck crane xcmg qy50ka price adopts a modular design with good overall rigidity and stability. This design makes the various components of the crane very easy to assemble and maintain. At the same time, the low center of gravity design of the crane's body chassis further enhances its stability when lifting heavy objects and reduces the risk of rollover. The frame is made of high-strength steel, which ensures durability in heavy-load operations and extends the service life of the equipment.
2. This truck crane xcmg qy50ka price is equipped with an efficient hydraulic system that can quickly lift and lower the load and keep it stable at the required height. Its main arm has a wide range of maximum lifting height and working radius, which is suitable for a variety of complex working conditions and heavy lifting. Thanks to the design of its hydraulic system, the XCMG 50-ton mobile crane can operate smoothly when lifting heavy objects, reducing the skill requirements for operators and enhancing safety.
3. This truck crane xcmg qy50ka price has excellent maneuverability and flexibility. It is designed with a large turning radius and a short operating range, which enables it to operate flexibly even in a small construction site. In addition, the equipment can respond quickly and is easy to operate, suitable for a variety of on-site operation needs, greatly improving the lifting efficiency.

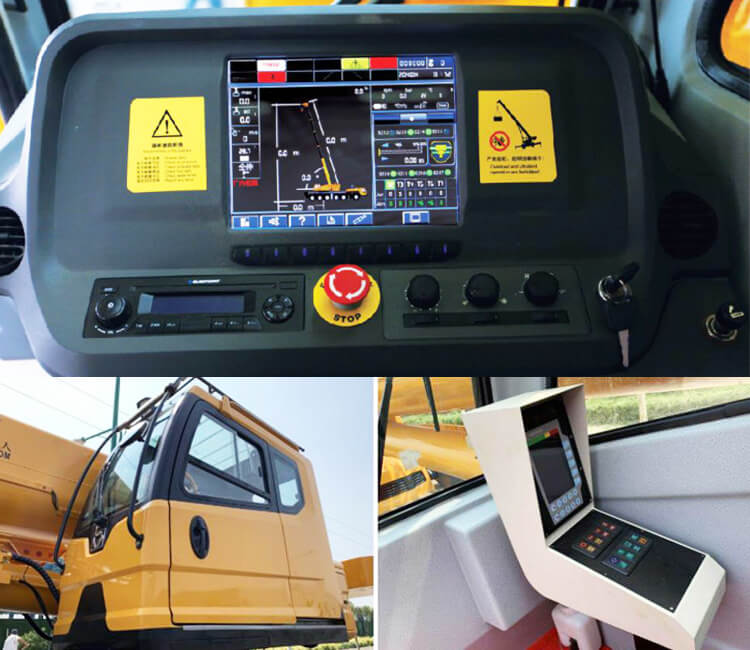

4. This truck crane xcmg qy50ka price is equipped with a leading intelligent control system and has a number of high-tech functions, making the operation more precise and efficient. The intelligent system can monitor the working status, load conditions and hydraulic system of the equipment in real time, ensuring that each operation is carried out in the best condition, effectively reducing the failure rate of the equipment and extending its service life. Through the integrated control panel, the operator can easily view the real-time data of the equipment, perform one-click operation, avoid cumbersome setting steps, greatly improve work efficiency, and allow the crane to operate efficiently in complex working environments.
5. This truck crane xcmg qy50ka price is designed with full consideration of economy and environmental protection. Its advanced power system and efficient hydraulic technology enable the equipment to greatly reduce energy consumption and emissions when performing heavy lifting operations, achieving higher fuel economy. In addition, the crane has also been optimized in material selection, manufacturing process and power management system, so that the equipment is not only stable and efficient in long-term high-load working environments, but also can effectively reduce maintenance costs and extend service life.
